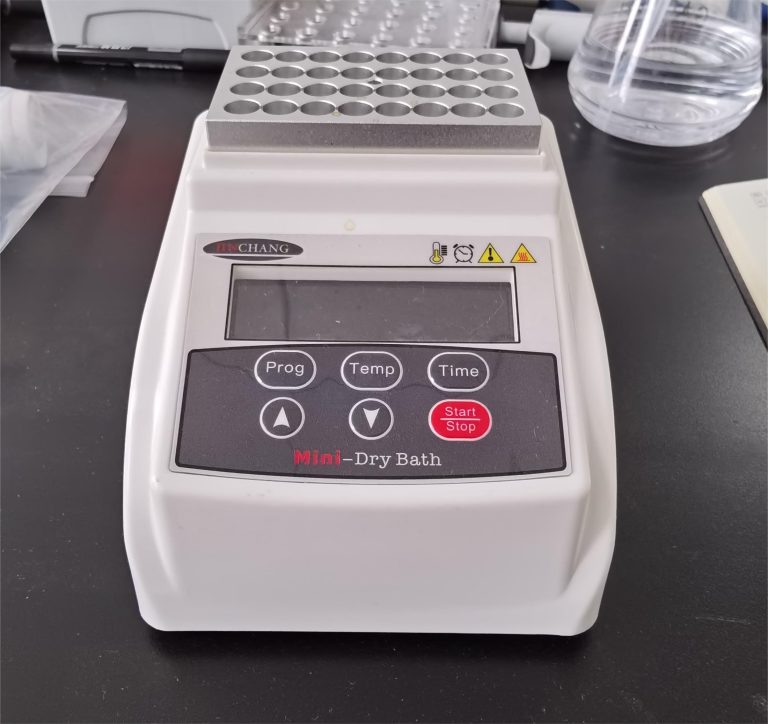

HT-100 Mini Metal Bath
The mini metal bath is a mini dry thermostat using PID fuzzy control technology, with small size, light weight, and high temperature control accuracy. It can be widely used in sample storage and reaction, DNA amplification, electrophoresis pre denaturation, serum coagulation, and constant temperature cultivation of various biological indicators for monitoring sterilization effects. It is particularly suitable for periodic culture monitoring of pressure steam sterilization biological indicators and ethylene oxide sterilization biological indicators. It is suitable for any occasion with 100~240V power supply on vehicles, ships, etc.
Specification
Product Features
◆ Small size, optional specification modules to meet different customer experimental needs.
◆ Adaptive control algorithm ensures accurate temperature control while effectively reducing experimental errors.
◆ Transparent insulation cover facilitates users to observe the entire process of the experiment through perspective.
◆ Highlight screen digital display, multi segment program can be recorded and saved, real-time display of set temperature, real-time temperature, and timing.
◆ Portable, suitable for 12-24V power supply adaptation.
Technical parameters
◆ Temperature setting range: 0-99.9 ℃
◆ Temperature control range: room temperature – 9.9 ℃
◆ Display accuracy: 0.1 ℃
◆ Temperature control accuracy: ± 0.3 ℃
◆ Temperature uniformity: ± 0.3 ℃
◆ Time setting: 1 min to 99 min
◆ Input power supply voltage: 24V
◆ Maximum power: 45w
◆ Weight: 0.45kg
◆ Overall dimension: 150 * 135 * 115mm
Optional module
15 * 2.0ml (centrifuge tube)/15 * 1.5ml (centrifuge tube)/24 * 0.5ml (centrifuge tube)/32 * 0.2ml (centrifuge tube).
Custom module.
Temperature setting
- Turn on the power switch, and all indicator lights and digital tubes are on. After about 5 seconds, the instant display window displays “PROG”
“SV/PV”、“TIME”.The number displayed in the setting temperature display window is the last used setting temperature.
- Press the corresponding “PROG”, “TEMP”, and “TIME” keys, and the display window “PROG”, “SV/PV”, and “TIME” will flash, immediately entering the setting state. Set the “program section”, “temperature SV”, and “time” in the corresponding key window. When all parameters are set, press the (START/STOP) key again to confirm, and the machine will start working. During the heating process, the TIME window will display “—“. When the temperature reaches the set value, Timing time display and countdown start; If the operation is suspended halfway, press “START/STOP”, the PV window will display OFF, stop heating, and set the parameters again.
- This model adopts an accurate temperature control algorithm. On the premise of ensuring accurate temperature, when the set temperature is indeed reached, it starts to work at a fixed time. If the set time is normally open, just adjust the TIME section to “ON” and work for a long time until the set temperature is reachedand constant temperature operation is performed.
